About Blowers
Case Studies of Blowers in the Pressure and Vacuum Applications
|
|
BLOWER
 | Blower ApplicationReservoir and Water Purification Plant Blowers.Water Park and Aquaculture Aeration Blowers. Flue Gas Desulphurization Blowers of Coal Fired Power Plant. Aeration Blowers for Incinerators and Burners. |
| Operating Principle of IRS Rotary Blower2 rotors rotate in opposite directions inside cylinder so there is still a little space between the inner of cylinder and rotors, preventing contact each other when rotating. Rotors are driven by gear outside the casing. The gas (air) trapped between the casing and rotors will be transported from the suction port to the discharge port. The gas (air) is pushed out from the discharge port to outside the casing as shown by the arrow. |
Aeration for Discharging Water and Wastewater Activated sludge, which uses microorganisms, is widely applied in wastewater treatment.Air is pumped through the aeration pipes on the bottom of processing tank, bubbles rise up, activated sludge will adsorb and oxidize pollutants in wastewater. The blower used to generated air. | Air Supply for Fish FarmsThe blower plays a role in supplying fresh oxygen for culturing fish and shellfish. It stirs to keep the quality of the upper and the lower water. Besides Rotary Blowers, other machines such as Compressors, Turbo Blowers can also be used in this case. However, those machines have disadvantages such as "less air amount", "not able to stir until the bottom layer". Therefore, Rotary Blowers are the most suitable to use when considering capacity, initial cost, and running cost. |
VACUUM PUMP

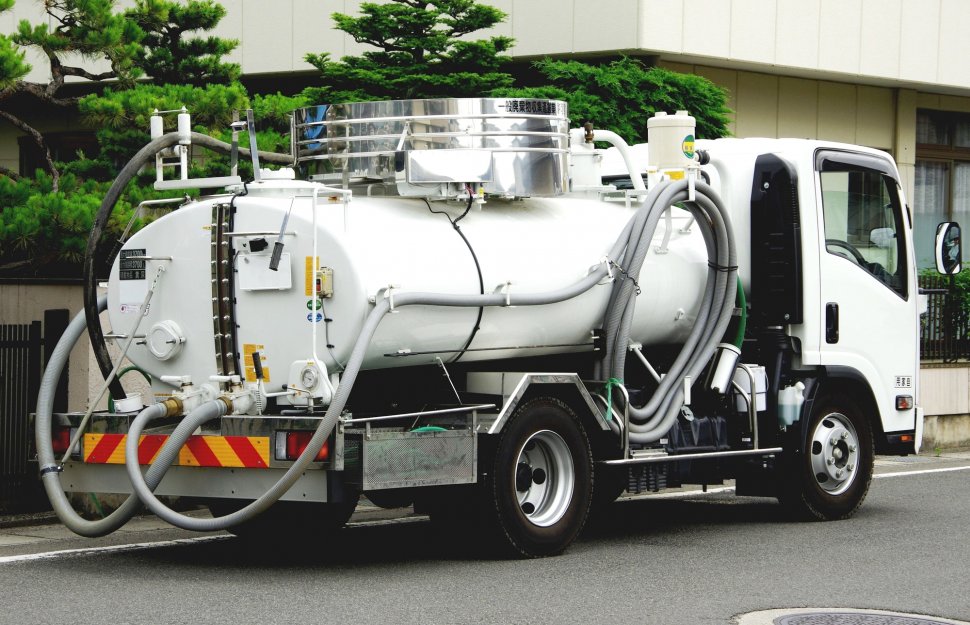

 | Vacuum Pump ApplicationsThe blowers can be us as city garbage collecting equipments, air transportation equipments, dehydrated machines in textile and paper industries, industrios cleaners, PSA equipments , and etc. |
 | Multistaged Vacuum PumpThanks to the grant from Shizuoka Foundation for Science and Technology Promotion, we have successfully developed TV Type 3-staged Vacuum Pump and DV Type 2-Staged Vacuum Pump. Based on technology, skills, equipments which we cultivated from manufacturing long-standing marine diesel engines, and as a blowers manufacturer with expertise and outstanding skills, we introduce the innovative Multistaged Vacuum Pump. (Applying pantent now) |
PSA equipments (Pressure Swing Adsorption)PSA equipments, which change pressure by using adsorbent to adsorb nitrogen or oxygen to separate and produce nitrogen gas or oxygen gas from air. Although the purity of nitrogen gas or oxygen gas produced by PSA equiments is much lower, the gas can be produced at low cost. Since the advantage of being not applicable to High Pressure Gas Safety Act, there are many users use PSA equipments to supply gas recently. |
History of Rotary Blower
The Roots Blowers / Compressors, named after initial patent owner of LOBE shape , Mr. Roots, are widely known for over 130 years.
Though the blowers had already been prodced in Japan before WWII, the need of the blowers accelerated in earnest after the war. Each manufacture established produce plans in detail. Generally, a billion industry blossomed into a ten billion business.
The formal production name in Japan are "Rotary Blower" and "Vacuum Pump (Roots type)". There are 2-Lobed and 3-Lobed type of blowers. Although the design of Lobed-shapes changes between each manufacture, it does not make much difference.
The simple structure with 2 rotors makes the blower easy to handle. The features such as oil free make the blowers work as power source to transport air for food, agitation in fire pit, cement, wheat flour, grain, etc.
Since 1948, by pouring water into the casing's hole, the new technology with better efficiency and higher vacuum has been developed. The vacuum pump which adsorbs water from each roller of paper machine creats an epoch-making application.
To improve safety, health, and environment in coal mine, the vacuum pump which can suck methane gas is deviced. It also help to prevent risks of explosions in cole mine.
The improvement and reliability of mechanical seals for shaft seals make it much safer and easier to handle gases, so the demand in petrochemistry industry grow significantly, laying the fundation for Gas Blowers and Vacuum Pumps today.
Due to administrative standards, the demand of Aeration Blowers for Water/Wastewater and Gas Blowers from public and private sectors develop and expand rapidly.
Following noise regulations, each measure is planned. The design of less-noise blowers, in particular with soundproof boxes and silencers, receives a high evaluation. Therefore, the blowers have been used in more ways than before.
Since the scale of a company is expanded, we can produce models from 25mm diameter to 650 diameter, with materials such as iron, stainless steel, rubber, nickel plated, which can provide acid-resistant and corrosion-resistant products to response customers' needs.
We also provide the export service. We have shipped products of many kinds and sizes around the world.
|
|
